MB Gigabyte AMD AM4 A520M DS3H V2 1.0

Name: MB Gigabyte AMD AM4 A520M DS3H V2 1.0
Brand: GIGABYTE
Price: 8840 RSD
Availability: InStock

(0 ocena)

Maloprodajna cena 9.600 RSD

Web cena 8.840 RSD

Ušteda:760 RSD

Akcija za ovaj proizvod traje od 03. 07. 2026 do 03. 07. 2026

Brza i pouzdana dostavaPoručite danas – proizvod stiže na vašu adresu u najkraćem roku, bilo gde u Srbiji.

Sigurna kupovina na ratePotpuna zaštita podataka i sigurna naplata. Izaberite plaćanje odloženo ili na rate uz maksimalnu bezbednost vaše porudžbine.

Metoda plaćanja	Broj rata	Mesečna rata
PIO fond (za penzionere)	6 meseci	1.600 RSD
Administrativna zabrana	6 meseci	1.600 RSD
Administrativna zabrana	12 meseci	800 RSD
OTP banka (na rate)	12 meseci	800 RSD

Tu smo za sva vaša pitanjaNaš tim je spreman da vam pomogne pre, tokom i nakon kupovine.
Pozovite nas: 035 88 56 910

Otkrijte moć A520M DS3H V2

Upoznajte se sa GIGABYTE A520M DS3H V2 matičnom pločom, vašim novim partnerom za izgradnju savršenog sistema! Ova matična ploča podržava AMD AM4 procesore koji pružaju izvanredne performanse, a sa AMD A520 čipsetom postavlja nove standarde u brzini i efikasnosti. Pripremite se za jedinstveno iskustvo gaming-a i multitaskinga!

Maksimalna podrška za memoriju

Sa podrškom za do 128GB DDR4 RAM-a, GIGABYTE A520M DS3H V2 vam omogućava da kreirate sistem koji će zadovoljiti i najzahtevnije korisnike. Bez obzira da li radite na video obradi, igrama ili grafičkom dizajnu, ova matična ploča će vam pružiti svu potrebnu snagu i stabilnost. Uživajte u glatkom radu bez prekida!

Idealna veličina i jednostavna instalacija

Format Micro ATX osigurava da GIGABYTE A520M DS3H V2 savršeno stane u većinu kućišta, dok vam jednostavna instalacija omogućava da se brzo upustite u svet personalizovane računarske opreme. Postignite svoj idealan sistem bez stresa i laganja, jer ova ploča kombinuje kvalitet i praktičnost na vrhunskom nivou!

Specifikacija	Vrednost
Procesorsko ležište (socket)	AMD AM4
Cipset	AMD A520
Format ploče	Micro ATX
Tip memorije	DDR4
Maksimalna ukupna memorija	128GB

Slični proizvodi

-20%

CPU
1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
1. AMD A520
Memory
1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor:
1. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
  * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
1. Realtek^® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
1 x PCI Express x16 slot, integrated in the CPU:
1. Supporting PCIe 3.0 x16 mode
1 x PCI Express x1 slot, integrated in the Chipset:
1. Supporting PCIe 3.0 x1 mode
Storage Interface
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
1. Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
1. Supporting for RAID 0, RAID 1, and RAID 10
USB
CPU:
1. 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x M.2 Socket 3 connector
6. 4 x SATA 6Gb/s connectors
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x USB 3.2 Gen 1 header
10. 1 x USB 2.0/1.1 header
11. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
12. 1 x Clear CMOS jumper
Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x DisplayPort
3. 1 x HDMI port
4. 4 x USB 3.2 Gen 1 ports
5. 2 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Fan fail warning
5. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Smart Backup
  System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. LAN bandwidth management software
Operating System
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
Form Factor
1. Micro ATX Form Factor; 24.4cm x 24.4cm

MB Gigabyte AMD AM4 A520M DS3H V2 1.0 – kupovina online | Najbolja cena | Fontana Term

MB Gigabyte AMD AM4 A520M DS3H V2 1.0

Otkrijte moć A520M DS3H V2

Maksimalna podrška za memoriju

Idealna veličina i jednostavna instalacija

Slični proizvodi

MB AM4 ASRock B550M Phantom Gaming 4 90-MXBE90-A0UAYZ

MB AM5 Asrock B650M PG Lightning

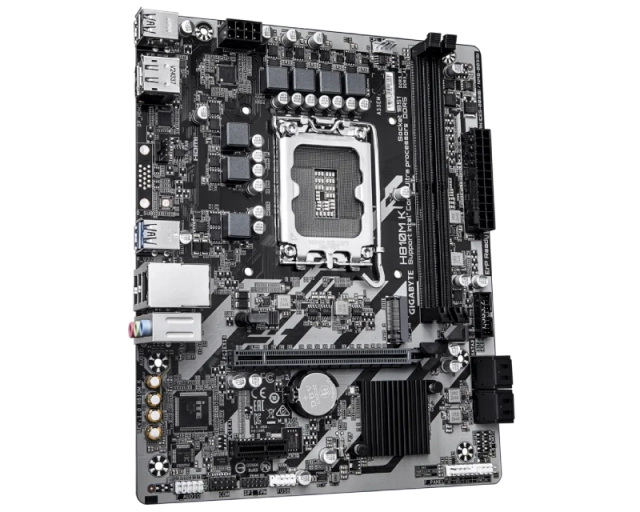

Maticna ploca GIGABYTE H810M K 1.0/LGA1851
